The Crestline Court Duplex

The Crestline Court Duplex Blueprint is a modern architectural plan featuring luxurious 4-bedroom terraced duplexes, designed to sit elegantly on a well-optimized 1400 square meter estate layout. This residential concept blends urban sophistication with family-centric space planning — making it ideal for developers, investors, or homeowners looking to create timeless multi-unit residences in high-demand residential zones.

Each duplex in Crestline Court is a fully detached 4-bedroom unit arranged in a terraced format, carefully spaced to prioritize privacy, convenience, and optimal natural lighting. With its minimalist geometry, expansive floor-to-ceiling glazing, timber-accented paneling, and bold overhangs, the design offers a stylish and upscale interpretation of contemporary urban living — delivering both visual appeal and practical comfort.

At the heart of this design lies intelligent interior planning. Each unit is spread across two well-laid-out floors, starting with a grand, inviting entryway that flows seamlessly into a spacious, naturally lit living room. This leads directly into a formal dining area designed for family bonding, hosting guests, or enjoying elegant dinners. Adjacent to the dining zone is a state-of-the-art kitchen, planned with high functionality in mind. It includes ample countertop space, room for a center island, dedicated pantry shelving, space for dual sinks, and appliance nooks — all tailored to meet the expectations of modern families.

Also on the ground floor is a guest bedroom with an en-suite bathroom, making it ideal for visitors, elderly family members, or flexible use as a home office or hobby room. A dedicated guest restroom near the staircase ensures added convenience for daytime visitors.

The upper level is reserved for personal retreat. A second living room functions as a family lounge, media space, or game area — offering a buffer between private bedrooms and enhancing family connectivity. The master suite is a luxurious sanctuary, complete with a walk-in wardrobe, a spa-inspired bathroom with glass shower enclosure and soaking tub, and access to a private balcony overlooking the street or garden courtyard. Two additional en-suite bedrooms complete the upper floor, designed with flexibility to suit growing children, work-from-home setups, or even personal wellness zones such as a home gym or study.

Each Crestline unit includes:

• 🛁 4 En-suite Bedrooms

• 🛋 2 Living Rooms

• 🍽 Open Dining Area + Fully Fitted Kitchen

• 🚗 Private Carport (2 Vehicles per Unit)

• 🌿 Personal backyard sit-out or garden space

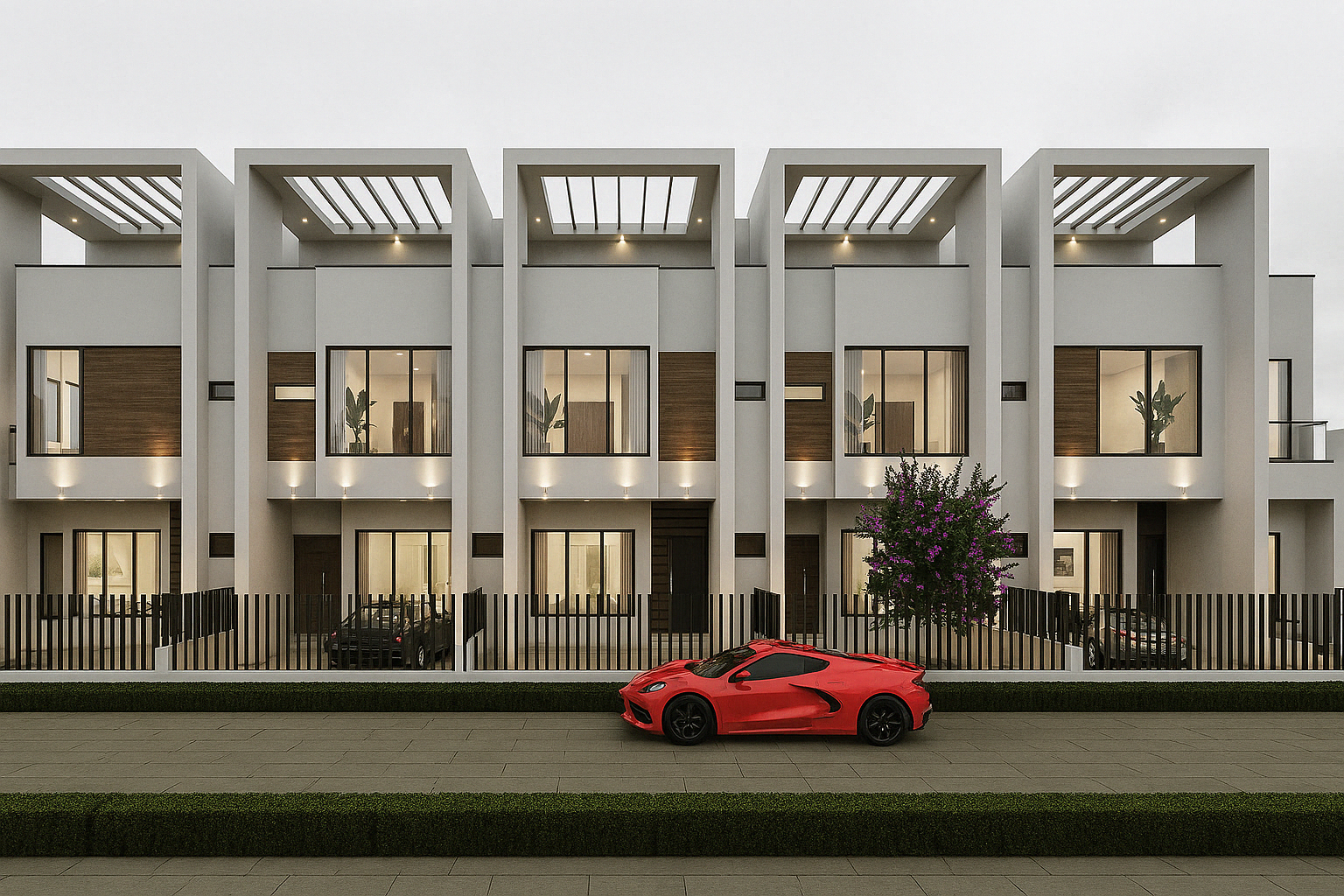

The structure is designed as a row of 5 terraced units, maximizing land use without compromising visual harmony or space efficiency. The compound features a paved front driveway with access roads wide enough for smooth vehicular movement. Pedestrian walkways, soft landscaping, and vertical fins between units enhance curb appeal while reinforcing territorial boundaries.

The exterior finish combines white and ash tones with dark metal accents and warm timber textures. Sleek horizontal slats, recessed balcony lighting, and clerestory windows promote passive ventilation, solar balance, and timeless aesthetics.

From a development standpoint, Crestline Court is:

• 📐 Scalable — suitable for residential plots, mini-estates, or gated family clusters

• 🔧 Builder-friendly — provided with clear technical drawings for swift local authority approval

• 🔒 Secure by design — includes provisions for boundary walls, access gates, lighting, and CCTV installation

• 🧠 Smart home-ready — infrastructure is pre-mapped for integration with automation systems

This Downloadable Blueprint Package Includes:

• Full Architectural Floor Plans (Ground & Upper)

• Roof Plan + Elevations (Front, Side, Rear)

• Electrical & Plumbing Schematics

• Structural Drawings + Foundation Layout

• 3D Rendered Views (Front & Aerial Angles)

• Detailed Site Plan for 5 Units on 1400 SQM

• Room Dimensions + Annotations

• Editable BOQ (Bill of Quantities) Template

• Smart Home & Lighting Integration Guide

• Delivered in PDF & PNG formats (DWG available on request)
